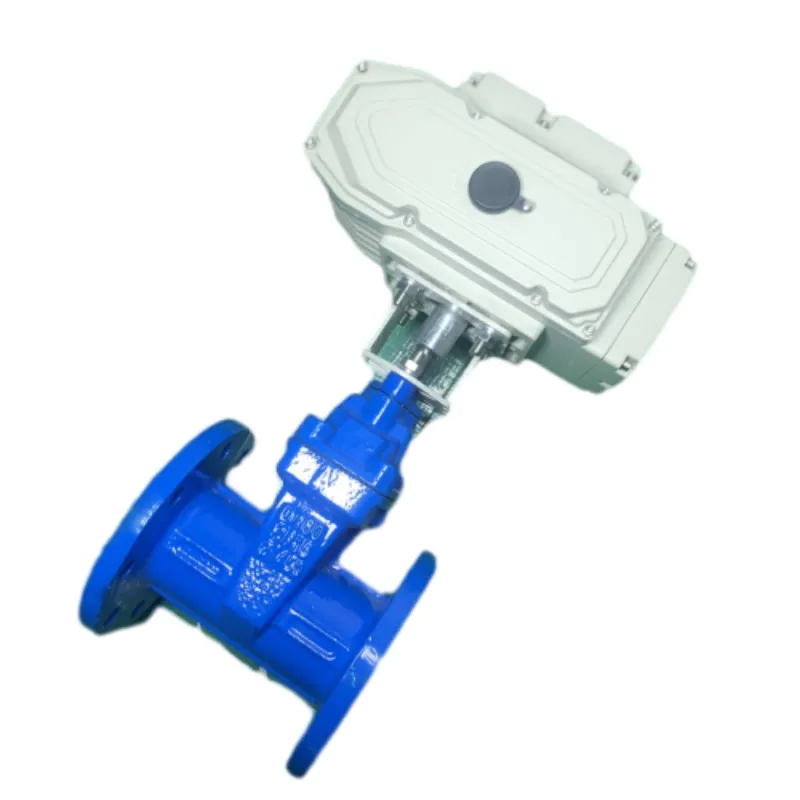

Electric Mollis sigillum portam CYMBALON

Top-mounted structuram electrica mollis signati portam valvae reduces connectens fulmina valvae corporis, auget reliability de valvae et vincere potentiam pondere ratio in normalis operationem valvae. Vincit defectus generali porta valvae ut pauperum signantes, elastica lassitudine et facile corrosio. Usus est ultricies effectus elastica porta laminam ad producendum parva moles deformatio ad consequi bona signantes effectus. Is est manifestum commoda lucis switch, reliable obsignationem, bonum elastica memoria et diu muneris vitae.

PDF Download

Details

Tags

Electric Mollis sigillum portam CYMBALON



【Opus Temperature】 0 ~ LXXX℃

【Idoneam medium】 aqua, vapor, oleum, etc.

【Applicationem】 electricity, constructione, environmental praesidium, aqua curatio, aqua copia et INCILE, etc.



  • Read More de porta CYMBALON
  • Legit More de aqua porta CYMBALON
  • Read More de porta CYMBALON



Productum commoda


  1. 1.Qt450-10 Ductile Ferrum Corpus, III campester sphaerooidization rate, in Tensile fortitudo est 450MPA, tractus rate est super X%. Non facile crack frigore resiliunt.

II. Epoxy coating pro utroque valvae intra et extra. Super 250μm coating crassitudine. Efficaciter ne valvae corpus corrosio et rubigo. Potest esse in purgamentorum ratio.

III. L% Flexilis contentus EPDM iactaret di cuneum. Flexilis firmiter coartur cum cuneum, quae non facile cadere.

IV. 2CR13 CYMBALON. Tres o-circulum signing consilio. Redigendum frictional resistentia cum switching, vitare medium nuditate.

V. Aeris derivantur nut et positioning fabrica, switch levior et vitat jamming in operationem.

VI. IP65 tutela gradu Electric Actuator.



Parameter notitia



Read More de porta CYMBALON types



Nomen

Design et fabricare

Faciem faciem longitudinis

Pressura test

Top Flange

Reference Latin

CJ / T CCXVI
ANSI C515

GB / T (XII) CCXXI
Asme b16.10

CJ / T CCXVI
API DXCVIII

GB / T 17241.6
Asme b16.1

Nomen

1-Body

2-Wedge

3-Stem

IV-Electric Actuator

Materia

DI

Di + EPDM

2Cr13

componens

Nomini



PN16

150LB

Dn

NPS (pollices)

L

K

N-Φ

K

N-Φ

50

2”

178

125

4-19

120.7

4-19

65

2  1/2”

190

145

4-19

139.7

4-19

80

3”

203

160

8-19

152.4

4-19

100

4”

229

180

8-19

190.5

8-19

125

5”

254

210

8-19

215.9

8-22

150

6”

267

240

8-23

241.3

8-22

200

8”

292

295

12-23

298.5

8-22

250

10”

330

355

12-26

362

12-25

300

12”

356

410

12-26

431.8

12-25

350

14”

381

470

16-26

476.3

12-29

400

16”

406

525

16-30

539.8

16-29

450

18”

432

585

20-30

577.9

16-32

500

20”

457

650

20-34

635

20-32

600

24”

508

770

20-37

749.3

20-35

700

28”

610

840

24-37



800

32”

660

950

24-40

900

36”

711

1050

28-40

1000

40”

811

1170

28-43

1200

48”

1015

1390

32-49
